      1X










       封裝規格[mm]: 2.0×1.6×0.45,

       頻率范圍[MHz]: 16 ~ 54
       常溫頻差[10^-6@+25℃]: ±10ppm
       工作溫度范圍: -20℃ ~ +70℃,
-40℃ ~ +85℃
       產品特色: Small Footprint,
Ceramic Seam SMD

       RoHS And 無鉛:

       資料下載:  Datasheet

       商城購買:









      產品詳情




      特點



      • AT-cut型石英晶體結構
      • 高Q值石英晶體
      • 低成本、小封裝尺寸
      • 高穩定性
        •






      產品應用



      • 音視頻設備
      • 便攜式設備
      • 短距離無線模塊
      • 計算機、調制解調器、微處理器
        •









      介紹

      							1X是一款超小型、低成本、緊湊式的MHz石英晶體，該產品可滿足在-40℃~+85℃的標準工作溫度范圍內提供常溫±10ppm的頻率公差，適用于音視頻、無線通信、微處理器等應用場景中。







      Electrical Specifications
      Item
      Symb.
      Min.
      Typ.
      Max.
      Unit
      Notes
      Frequency Range
      Freq.
      16.000

      54.000
      MHz

      Oscillation Mode

      Fundamental（AT-cut）

      Frequency Tolerance
      △f/f


      ±10
      ppm
      at 25℃±2℃
      Operating Temperature
      T_use
      -20

      70
      ℃



      -40

      85
      ℃

      Storage Temperature Range
      T_sta
      -55

      125
      ℃

      Shunt Capacitance
      C0


      3
      pF

      Drive Level
      DL

      10
      100
      μW

      Load Capacitance
      CL
      6

      20
      pF

      Equivalent Series Resistance
      ESR


      200
      Ω
      16MHz≤ Freq. ＜24MHz




      80
      Ω
      24MHz≤ Freq. ＜26MHz




      60
      Ω
      26MHz≤ Freq.  ≤ 54MHz
      Insulation Resistance
      IR


      500
      MΩ
      at DC 100V
      Aging
      f_age


      3
      ppm
      1st. Year at 25℃

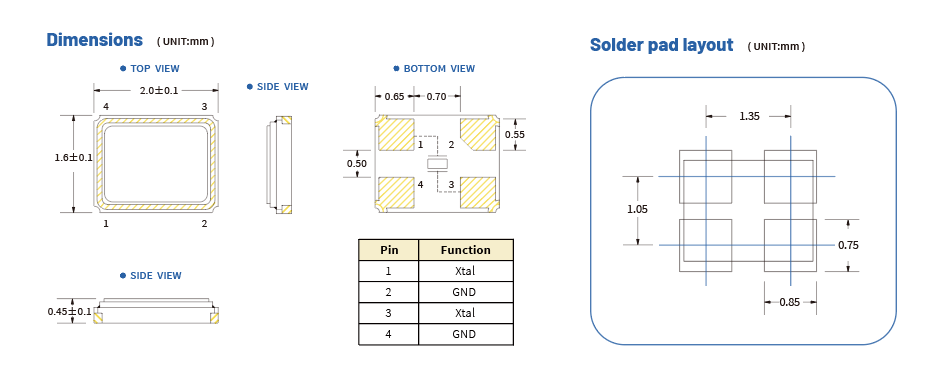

      Mechanical Dimensions

      Frequency Stability & Operating Temperature Range
      Operating Temperature Range
      Frequency Stability
      ±10ppm
      ±15ppm
      ±20ppm
      ±30ppm
      -20℃ to +70℃
      ▲
      ★
      ★
      ★
      -40℃ to +85℃

      ▲
      ★
      ★
      ★：Available    ▲：Conditional

      Selection Guide
      ⑴. 需求描述
      選擇需要的封裝規格及產品系列：2.0×1.6mm；0X Series
      選擇需要的頻率：16.000MHz
      確定晶體的負載電容值（CL）：12pF
      選擇需要的精度：±10ppm
      選擇需要的工作溫度范圍：-40℃~+85℃
      您需要的產品是：1X Series 16MHz 12pF ±10ppm -40~+85℃
      ⑵. 標準規格及型號
      Nominal FrequencyLoad Capacitance（CL）Product NumberNominal FrequencyLoad Capacitance（CL）Product Number
      16.000MHz
      		8pF*1B16.000F0810F3027.120MHz8pF*1B27.120F0810F30
      9pF*1B16.000F0910F3010pF*1B27.120F1010F30
      10pF*1B16.000F1010F3012pF*1B27.120F1210F30
      12pF*1B16.000F1210F3030.000MHz8pF*1B30.000F0810F30
      20.000MHz
      		8pF*1B20.000F0810F3010pF*1B30.000F1010F30
      10pF*1B20.000F1010F3012pF*1B30.000F1210F30
      12pF*1B20.000F1210F3032.000MHz8pF*1B32.000F0810F30
      24.000MHz
      		8pF*1B24.000F0810F3012pF*1B32.000F1210F30
      9pF*1B24.000F0910F3037.400MHz8pF*1B37.400F0810F30
      10pF*1B24.000F1010F3010pF*1B37.400F1010F30
      12pF*1B24.000F1210F3012pF*1B37.400F1210F30
      24.576MHz8pF*1B24.576F0810F3038.400MHz8pF*1B38.400F0810F30
      10pF*1B24.576F1010F3010pF*1B38.400F1010F30
      25.000MHz8pF*1B25.000F0810F3012pF*1B38.400F1210F30
      10pF*1B25.000F1010F3040.000MHz8pF*1B40.000F0810F30
      12pF*1B25.000F1210F3010pF*1B40.000F1010F30
      26.000MHz
      		8pF*1B26.000F0810F3012pF*1B40.000F1210F30
      10pF*1B26.000F1010F3048.000MHz8pF*1B48.000F0810F30
      12pF*1B26.000F1210F3010pF*1B48.000F1010F30
      27.000MHz8pF*1B27.000F0810F3012pF*1B48.000F1210F30
      10pF*1B27.000F1010F3050.000MHz8pF*1B50.000F0810F30
      12pF*1B27.000F1210F3010pF*1B50.000F1010F30
