      5XA










       封裝規格[mm]: 5.0×3.2×0.8,

       頻率范圍[MHz]: 8 ~ 50
       常溫頻差[10^-6@+25℃]: ±10ppm
       工作溫度范圍: -40℃ ~ +105℃,
-40℃ ~ +125℃
       產品特色: 2PIN Package,
High Temperature

       RoHS And 無鉛:

       資料下載:  Datasheet

       商城購買:









      產品詳情




      特點



      • AT-cut型石英晶體結構
      • 高Q值石英晶體
      • 低成本設計
      • 高穩定性
        •






      產品應用



      • 工業應用
      • 便攜式設備
      • 短距離無線模塊
      • 計算機、調制解調器、微處理器
        •









      介紹

      							5XA是一款小型、低成本、小尺寸的MHz石英晶體，該產品可滿足在-40℃~+85℃的標準工作溫度范圍內提供常溫±10ppm的頻率公差，適用于工業應用、無線通信、微處理器等應用場景中。







      Electrical Specifications
      Item
      Symb.
      Min.
      Typ.
      Max.
      Unit
      Notes
      Frequency Range
      Freq.
      8.000

      50.000
      MHz

      Oscillation Mode

      Fundamental（AT-cut）

      Frequency Tolerance
      △f/f


      ±10
      ppm
      at 25℃±2℃
      Operating Temperature
      T_use
      -20

      70
      ℃

      -40

      85
      ℃

      Storage Temperature Range
      T_sta
      -55

      125
      ℃

      Shunt Capacitance
      C0


      5
      pF

      Drive Level
      DL

      10
      300
      μW

      Load Capacitance
      CL
      8

      20
      pF

      Equivalent Series Resistance
      ESR


      100
      Ω
       8MHz≤ Freq. ＜10MHz


      80
      Ω
      10MHz≤ Freq. ＜16MHz


      50
      Ω
      16MHz≤ Freq. ＜20MHz


      40
      Ω
      20MHz≤ Freq. ＜24MHz


      30
      Ω
      24MHz≤ Freq.  ≤ 50MHz
      Insulation Resistance
      IR


      500
      MΩ
      at DC 100V
      Aging
      f_age


      3
      ppm
      1st. Year at 25℃

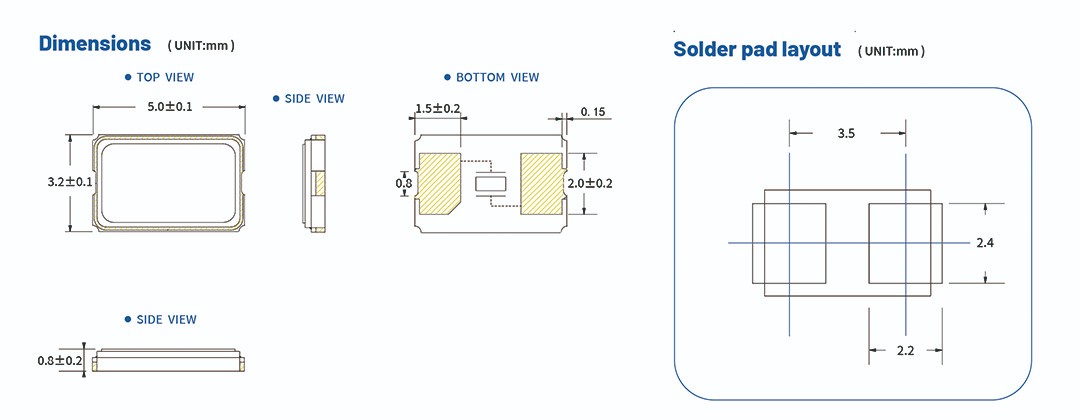

      Mechanical Dimensions

      Frequency Stability & Operating Temperature Range
      Operating Temperature Range
      Frequency Stability
      ±10ppm
      ±15ppm
      ±20ppm
      ±30ppm
      -20℃ to +70℃
      ▲
      ★
      ★
      ★
      -40℃ to +85℃

      ▲
      ★
      ★
      ★：Available    ▲：Conditional

      Selection Guide
      需求描述
      選擇需要的封裝規格、腳位及產品系列：5.0×3.2mm；2PAD；5XA Series
      選擇需要的頻率：8.000MHz
      確定晶體的負載電容值（CL）：12pF
      選擇需要的精度：±20ppm
      選擇需要的工作溫度范圍：-40℃~+85℃
      您需要的產品是：5XA Series 8MHz 12pF ±20ppm -40℃~+85℃
      標稱頻率及常規負載電容（CL）值參考
      Nominal Frequency [MHz]Load Capacitance[CL ,Styp.]Nominal Frequency [MHz]Load Capacitance[CL ,Styp.]
      8.000
      		8pF；10pF；12pF；15pF；20pF22.1184
      		8pF；10pF；12pF；20pF
      8.192
      		8pF；10pF；12pF；20pF24.0008pF；10pF；12pF；15pF；20pF
      10.000
      		8pF；10pF；12pF；20pF24.576
      		8pF；10pF；12pF；20pF
      11.0592
      		8pF；10pF；12pF；20pF25.000
      		8pF；10pF；12pF；15pF；20pF
      12.000
      		8pF；10pF；12pF；15pF；20pF26.0008pF；10pF；12pF；20pF
      12.288
      		8pF；10pF；12pF；20pF27.0008pF；10pF；12pF；20pF
      13.560
      		8pF；10pF；12pF；20pF27.1208pF；10pF；12pF；20pF
      14.318188pF；10pF；12pF；20pF30.0008pF；10pF；12pF；20pF
      14.7456
      		8pF；10pF；12pF；20pF32.0008pF；10pF；12pF；20pF
      16.000
      		8pF；10pF；12pF；15pF；20pF
      		40.0008pF；10pF；12pF；15pF；20pF
      16.384
      		8pF；10pF；12pF；20pF48.0008pF；10pF；12pF；15pF；20pF
      18.4328pF；10pF；12pF；20pF50.0008pF；10pF；12pF；20pF
      20.0008pF；10pF；12pF；15pF；20pF















      產品分類





      資料下載





      商城購買
