封裝規格[mm]:	1.6×1.2×0.35
頻率范圍[MHz]:	24 ~ 54
常溫頻差[10^-6@+25℃]:	±10ppm
工作溫度范圍:	-20℃ ~ +70℃, -40℃ ~ +85℃
產品特色:	Small Footprint, Ceramic Seam SMD
RoHS And 無鉛:
資料下載:	Datasheet
商城購買:

封裝規格[mm]:

1.6×1.2×0.35

頻率范圍[MHz]:

24 ~ 54

常溫頻差[10^-6@+25℃]:

±10ppm

工作溫度范圍:

-20℃ ~ +70℃, -40℃ ~ +85℃

產品特色:

Small Footprint, Ceramic Seam SMD

RoHS And 無鉛:

資料下載:

商城購買:

OX是一款超小型、低成本、緊湊式的MHz石英晶體，該產品可滿足在-40℃~+85℃的標準工作溫度范圍內提供常溫±10ppm的頻率公差，適用于音視頻、無線通信、微處理器等應用場景中。

**Electrical Specifications**
Item	Symb.	Min.	Typ.	Max.	Unit	Notes
Frequency Range	Freq.	24.000		54.000	MHz
Oscillation Mode		Fundamental（AT-cut）
Frequency Tolerance	△f/f			±10	ppm	at 25℃±2℃
Operating Temperature	T_use	-20		70	℃
Operating Temperature	T_use	-40		85	℃
Storage Temperature Range	T_sta	-55		125	℃
Shunt Capacitance	C0			3	pF
Drive Level	DL		10	100	μW
Load Capacitance	CL	6		20	pF
Equivalent Series Resistance	ESR			200	Ω	24MHz≤ Freq. ＜32MHz
				100	Ω	32MHz≤ Freq. ＜36MHz
				80	Ω	36MHz≤ Freq. ≤ 54MHz
Insulation Resistance	IR			500	MΩ	at DC 100V
Aging	f_age			3	ppm	1st. Year at 25℃

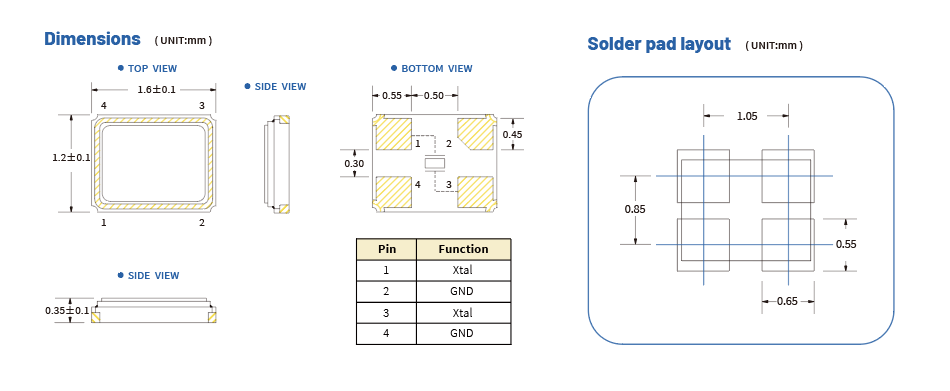

**Mechanical Dimensions**

**Frequency Stability & Operating Temperature Range**
Operating Temperature Range	Frequency Stability
Operating Temperature Range	±10ppm	±15ppm	±20ppm	±30ppm
-20℃ to +70℃	▲	★	★	★
-40℃ to +85℃		▲	★	★
★：Available ▲：Conditional

**Selection Guide**
⑴. 需求描述
選擇需要的封裝規格及產品系列：1.6×1.2mm；0X Series 選擇需要的頻率：24.000MHz 確定晶體的負載電容值（CL）：12pF 選擇需要的精度：±10ppm 選擇需要的工作溫度范圍：-40℃~+85℃ 您需要的產品是：0X Series 24MHz 12pF ±10ppm -40~+85℃
⑵. 標準規格及型號
Nominal Frequency	Load Capacitance（CL）	Product Number	Nominal Frequency	Load Capacitance（CL）	Product Number
24.000MHz	8pF	*0B24.000F0810F30	32.000MHz	8pF	*0B32.000F0810F30
25.000MHz	8pF	*0B25.000F0810F30	32.000MHz	10pF	*0B32.000F1010F30
25.000MHz	10pF	*0B25.000F1010F30	32.000MHz	12pF	*0B32.000F1010F30
25.000MHz	12pF	*0B25.000F1010F30	37.400MHz	8pF	*0B37.400F0810F30
26.000MHz	8pF	*0B26.000F0810F30	38.400MHz	8pF	*0B38.400F0810F30
26.000MHz	10pF	*0B26.000F1010F30	40.000MHz	8pF	*0B40.000F0810F30
26.000MHz	12pF	*0B26.000F1210F30	40.000MHz	10pF	*0B40.000F1010F30
27.000MHz	8pF	*0B27.000F0810F30	48.000MHz	8pF	*0B48.000F0810F30
27.120MHz	8pF	*0B27.120F0810F30	48.000MHz	10pF	*0B48.000F1010F30
27.120MHz	10pF	*0B27.120F1010F30	50.000MHz	10pF	*0B50.000F1010F30
