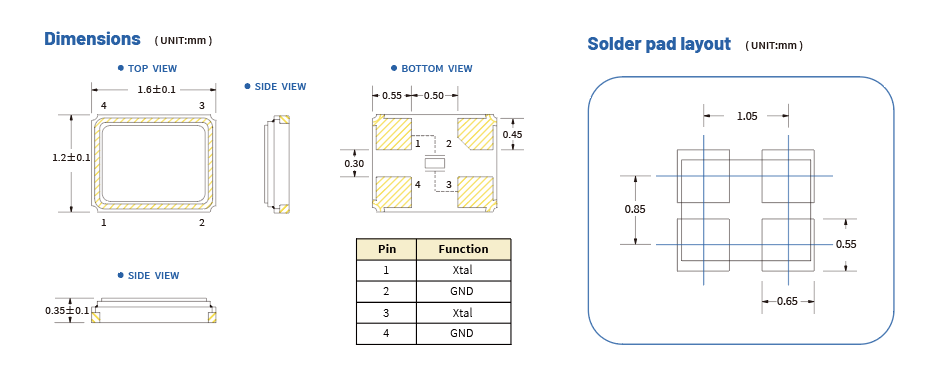

| Package Size: | 1.6×1.2×0.35 |
|---|---|
| Frequency Range: | 24 ~ 54 |
| Frequency Tolerance[10^-6@+25℃]: | ±10ppm |
| Temperature Range: | -20℃ ~ +70℃, -40℃ ~ +85℃ |
| FEATURES: | Small Footprint, Ceramic Seam SMD |
| RoHS And Pb Free: | |
| Files Download: | Datasheet |
| Shopping: | |
Item | Symb. | Min. | Typ. | Max. | Unit | Notes |
Frequency Range | Freq. | 24.000 | 54.000 | MHz | ||
Oscillation Mode | Fundamental（AT-cut） | |||||
Frequency Tolerance | △f/f | ±10 | ppm | at 25℃±2℃ | ||
Operating Temperature | T_use | -20 | 70 | ℃ | ||
-40 | 85 | ℃ | ||||
Storage Temperature Range | T_sta | -55 | 125 | ℃ | ||
Shunt Capacitance | C0 | 3 | pF | |||
Drive Level | DL | 10 | 100 | μW | ||
Load Capacitance | CL | 6 | 20 | pF | ||
Equivalent Series Resistance | ESR | 200 | Ω | 24MHz≤ Freq. ＜32MHz | ||
100 | Ω | 32MHz≤ Freq. ＜36MHz | ||||
80 | Ω | 36MHz≤ Freq. ≤ 54MHz | ||||
Insulation Resistance | IR | 500 | MΩ | at DC 100V | ||
Aging | f_age | 3 | ppm | 1st. Year at 25℃ | ||
|
Operating Temperature Range | Frequency Stability | |||
±10ppm | ±15ppm | ±20ppm | ±30ppm | |
-20℃ to +70℃ | ▲ | ★ | ★ | ★ |
-40℃ to +85℃ | ▲ | ★ | ★ | |
★：Available ▲：Conditional | ||||
Description of Requirement | |||||
Select the required package specification and product series：1.6×1.2mm；0X Series Select the desired frequency：24.000MHz Determining the Load Capacitance Value of the Crystal（CL）：12pF Select the desired frequency stability：±10ppm Select the desired operating temperature range：-40℃~+85℃ The product you need is：0X Series 24MHz 12pF ±10ppm -40~+85℃ | |||||
| Standard specification and model | |||||
| Nominal Frequency | Load Capacitance（CL） | Product Number | Nominal Frequency | Load Capacitance（CL） | Product Number |
| 24.000MHz | 8pF | *0B24.000F0810F30 | 32.000MHz | 8pF | *0B32.000F0810F30 |
| 25.000MHz | 8pF | *0B25.000F0810F30 | 32.000MHz | 10pF | *0B32.000F1010F30 |
| 25.000MHz | 10pF | *0B25.000F1010F30 | 32.000MHz | 12pF | *0B32.000F1010F30 |
| 25.000MHz | 12pF | *0B25.000F1010F30 | 37.400MHz | 8pF | *0B37.400F0810F30 |
| 26.000MHz | 8pF | *0B26.000F0810F30 | 38.400MHz | 8pF | *0B38.400F0810F30 |
| 26.000MHz | 10pF | *0B26.000F1010F30 | 40.000MHz | 8pF | *0B40.000F0810F30 |
| 26.000MHz | 12pF | *0B26.000F1210F30 | 40.000MHz | 10pF | *0B40.000F1010F30 |
| 27.000MHz | 8pF | *0B27.000F0810F30 | 48.000MHz | 8pF | *0B48.000F0810F30 |
| 27.120MHz | 8pF | *0B27.120F0810F30 | 48.000MHz | 10pF | *0B48.000F1010F30 |
| 27.120MHz | 10pF | *0B27.120F1010F30 | 50.000MHz | 10pF | *0B50.000F1010F30 |
