Frequency Range

Freq.

90.000

160.000

MHz

Standard Frequency

Freq.

100.000 ,106.250 ,125.000

148.500 ,150.000 ,155.520 156.250

MHz

Contact SCTF for frequencies not listed

Output

LVPECL

Operating Temperature

T_use

-20

+70

℃

-40

+85

℃

Storage Temperature Range

T_stg

-55

+125

℃

Supply Voltage

Vdd

1.8 , 2.5 , 3.3

V

±5% max.

Output Load

L_PECL

50

Ω

Vdd - 2.0 V

Current Consumption

Icc

50

mA

90MHz ≤ Freq. ＜ 125MHz

75

125MHz ≤ Freq. ≤ 160MHz

Duty Cycle

SYM

45

55

%

Rise / Fall Time

TR / TF

1

nS

20% Vdd to 80% Level

Start-up Time

T_str

10

mS

To 90% of Final Amplitude

High output voltage

VOH

Vdd-1.025

V

Low output voltage

VOL

Vdd-1.62

V

Enable Voltage High (Logic 1)

VIH

0.7Vdd

V

Pin 1 Tri-state

Outputs will be enable if OE is Logic 1 or open;

Outputs will be disable if OE is Logic 0.

Enable Voltage Low (Logic 0)

VIL

0.3Vdd

V

RMS Phase Jitter

TRPJ

0.5

pSec

Period Jitter(12KHz-20MHz)

Phase Noise@156.25MHz

100 Hz

-90

dBc/Hz

1 KHz

-120

dBc/Hz

10 KHz

-140

dBc/Hz

Aging

f_age

±3

ppm

1st. Year at 25℃

±20ppm

±25ppm

±30ppm

±50ppm

-20℃ to +70℃

▲

★

★

★

-40℃ to +85℃

▲

★

★

★：Available    ▲：Conditional

All condition*：Include 25℃ tolerance, operating temperature range , input voltage change,aging, load change.

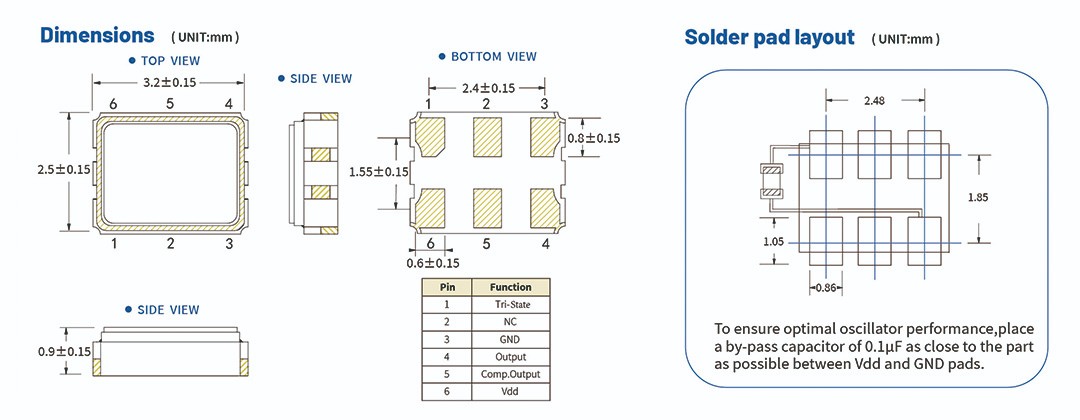

Select the required packaging specifications and product series：   3.2×2.5mm；3ZP Series

Select the desired frequency：    100.000MHz

Select the required supply voltage：   3.3V

Select the desired output mode： LVPECL

Select the required frequency tolerance（at 25℃）：   ±20ppm

Select the desired operating temperature range：    -40℃~+85℃

Select the desired frequency and temperature characteristics：     ±30ppm

The product you need is： 3ZP Series 100.000MHz 3.3V LVPECL ±20ppm@25℃ ±30ppm@-40~+85℃
